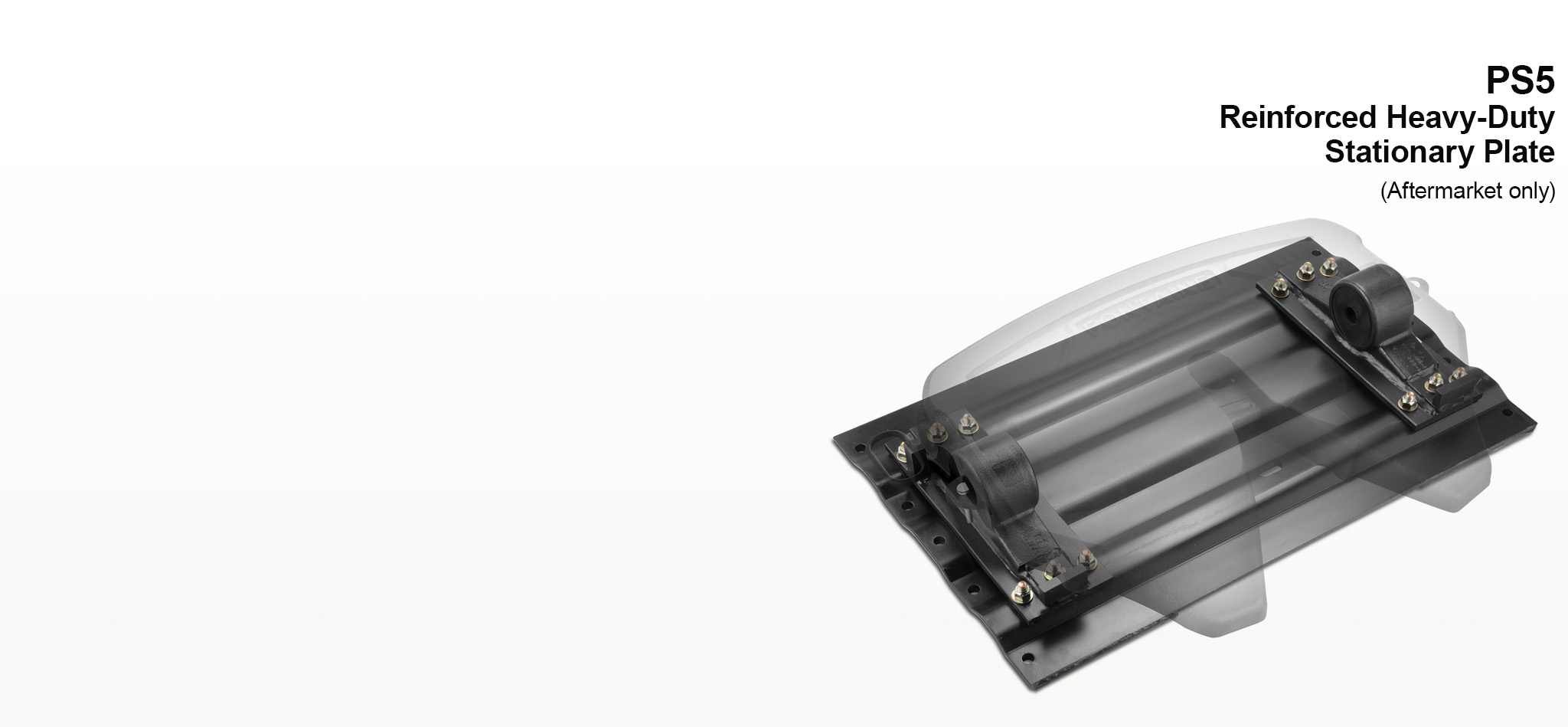

- Fontaine PS5 steel reinforced stationary plate mount is perfect for hauling heavy loads
- Corrugated design features additional structural steel reinforcement for greater stability
- Gives you the extra strength you need to handle tough applications
- PS5 No-Tilt fifth wheel assembly available for frameless dump applications

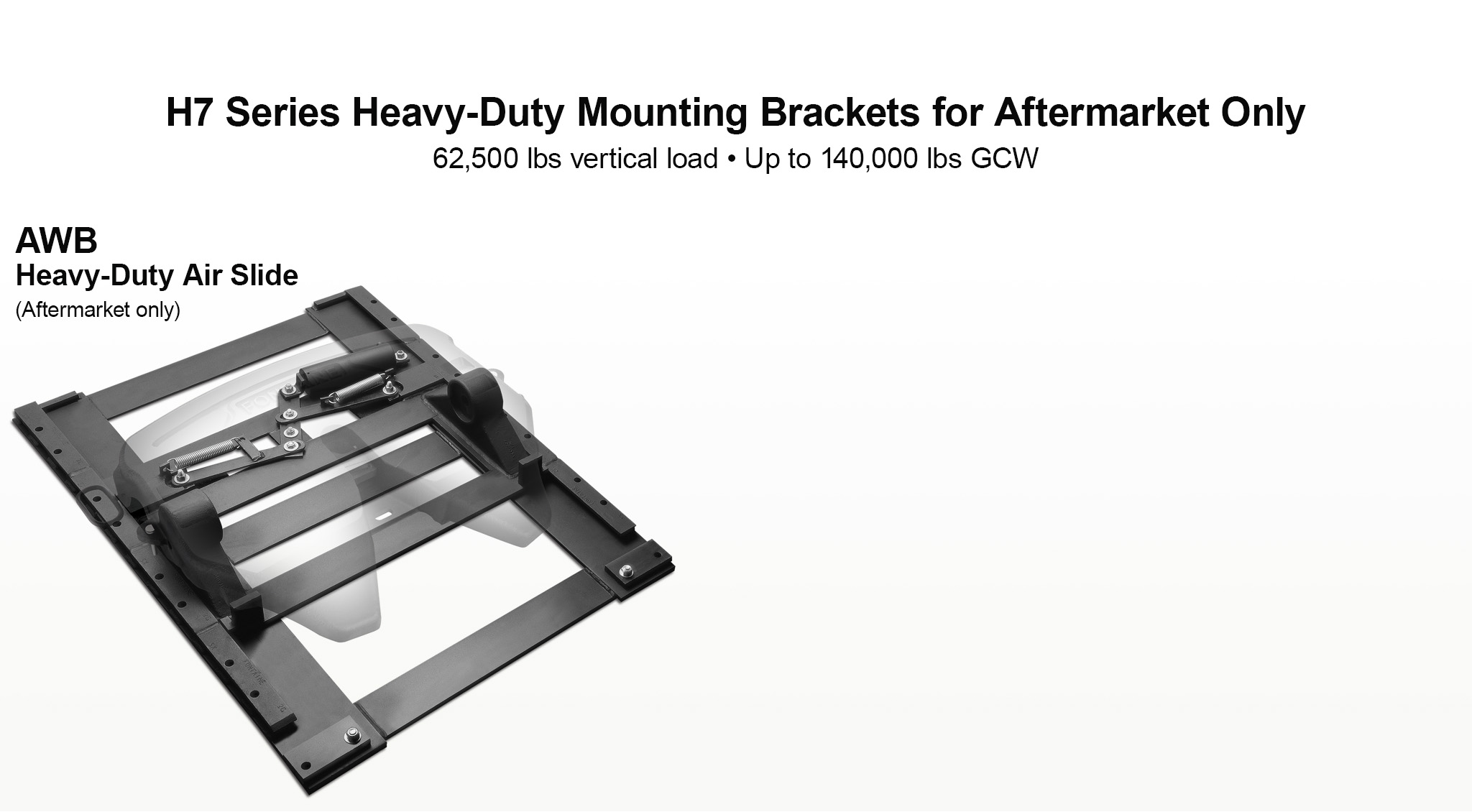

- The Fontaine AWB air slide bracket makes it easy to reposition the fifth wheel to balance your load
- An air cylinder drives a mechanical linkage to release the slide locking wedges–operates in a closed position to protect the stainless steel shaft from corrosion, bending and roadspray
- Available in a wide range of mounting heights and travel lengths to meet your hauling needs.
- AWB No-Tilt fifth wheel assembly available for frameless dump applications

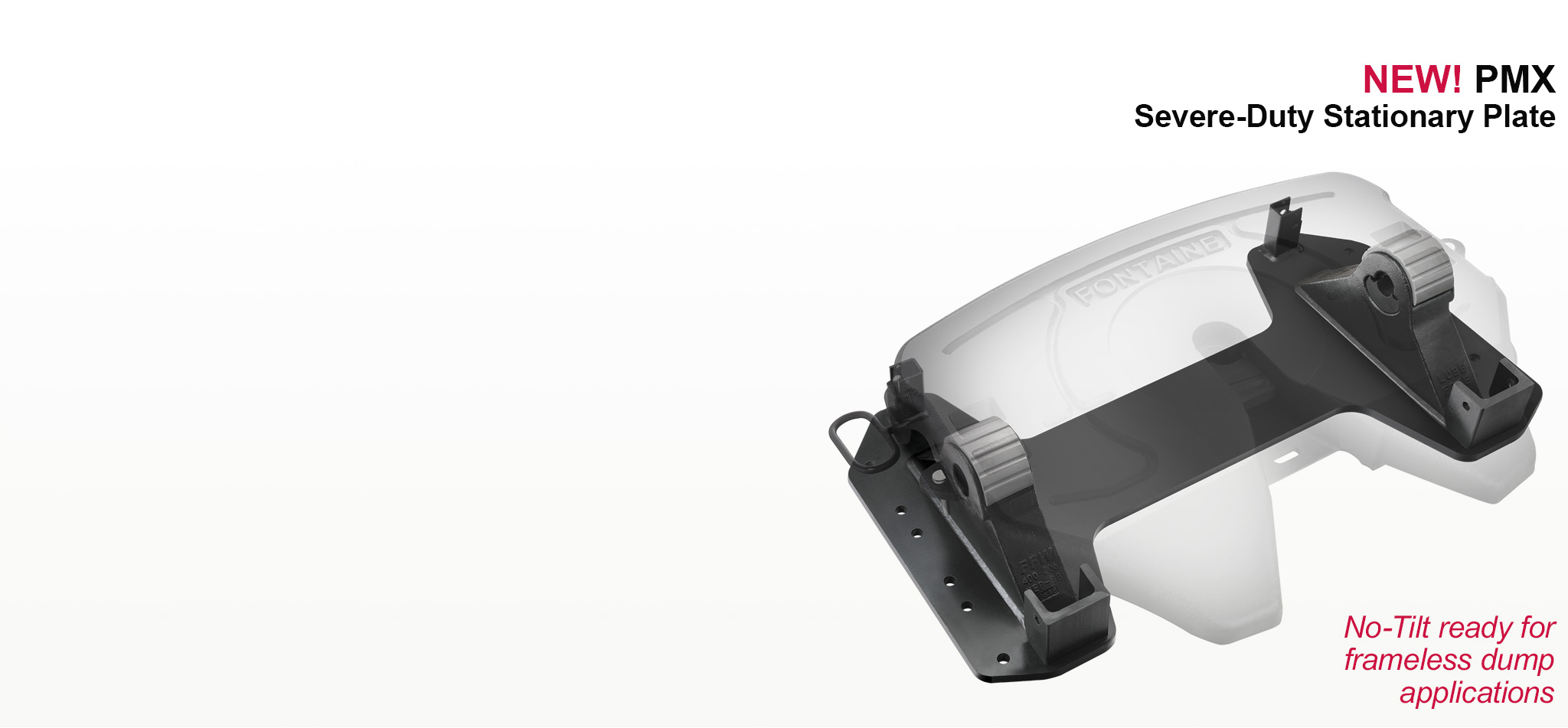

- The new Fontaine PMX has all of the same great features as the PMH except that it has a slightly wider footprint for wider bolt hole spacing
- Brackets are welded to a 5/8" steel plate that has six bolt holes on each side at 38" bolt hole centers
- Computer design technology cuts excess weight without sacrificing one pound of capacity
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Bolt-on No-Tilt feature for frame dump applications – Simply engage the four stops on the mount to prevent the fifth wheel from rocking (Part No: KIT-NO-TILT)

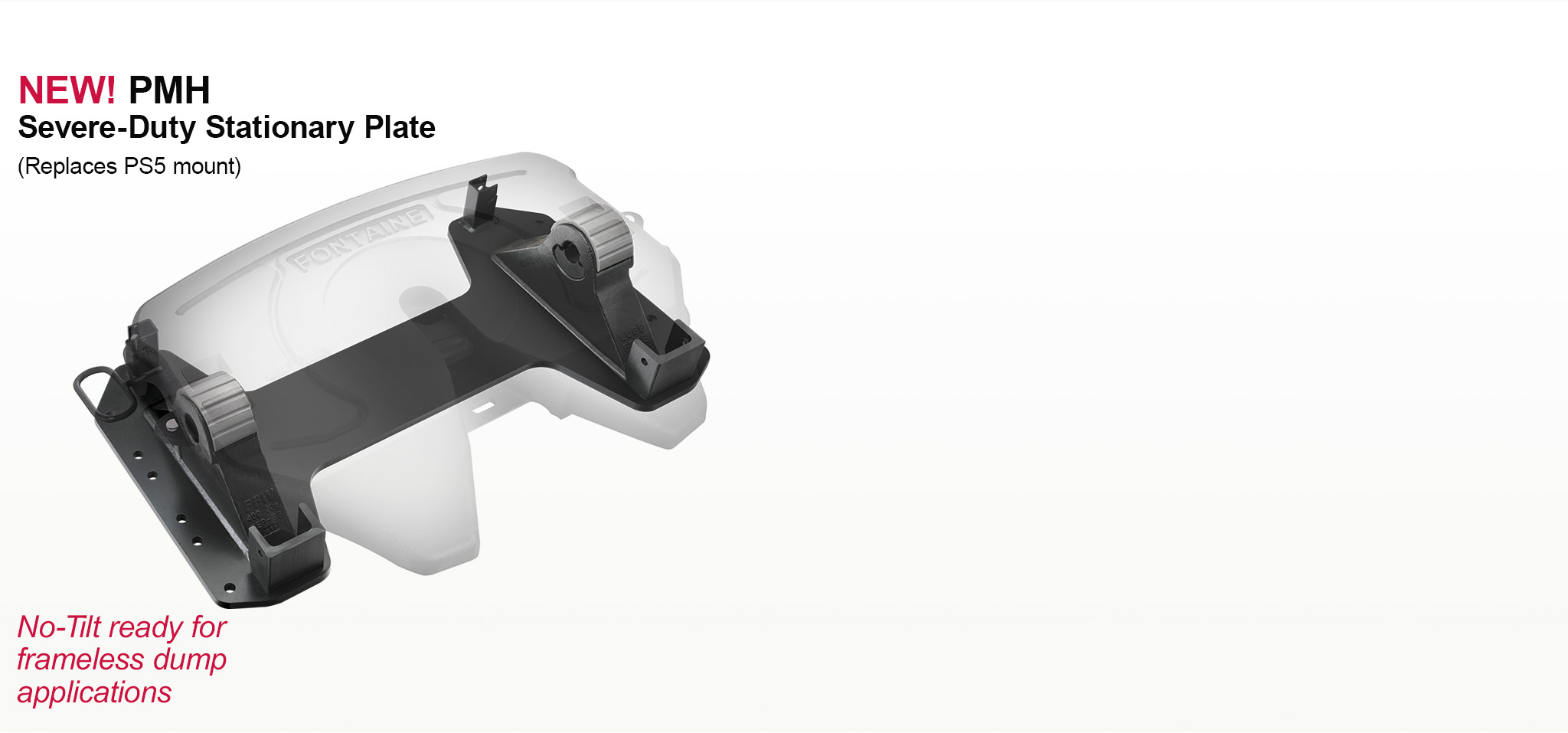

- Adjustable stationary mount gives you greater versatility for improved payload distribution
- Brackets are welded to a 5/8" steel plate that has six bolt holes on each side at 37-1/4" bolt hole centers
- Computer design technology cuts excess weight without sacrificing one pound of capacity
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Bolt-on No-Tilt feature for frame dump applications – Simply engage the four stops on the mount to prevent the fifth wheel from rocking (Part No: KIT-NO-TILT)

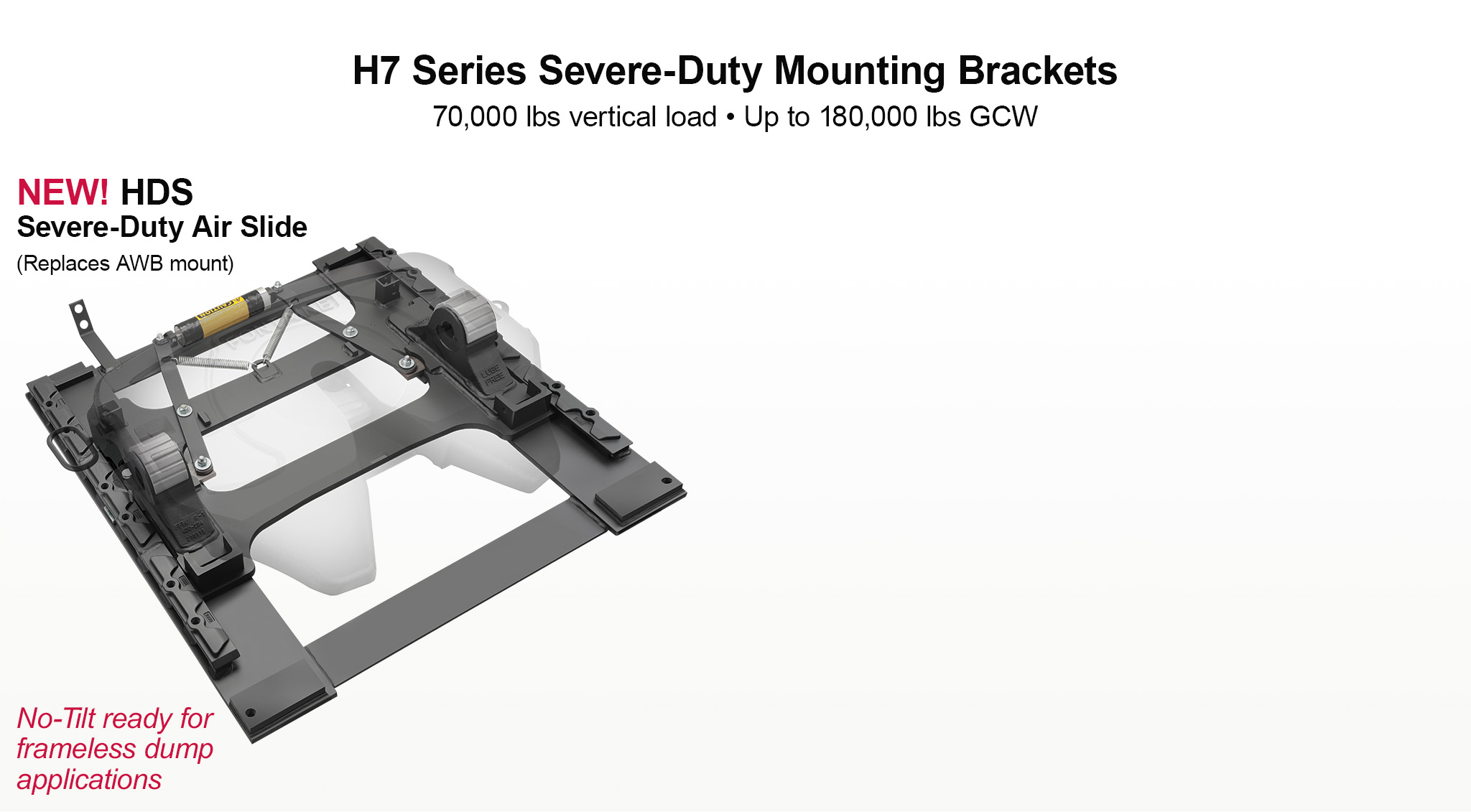

- The new Fontaine HDS air slide bracket makes it easy to reposition the fifth wheel to balance your load
- An air cylinder drives a mechanical linkage to release the slide locking wedges–operates from a closed position to protect the stainless steel shaft from corrosion, bending and roadspray
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Available in a wide range of mounting heights and travel lengths to meet your hauling needs.
- Bolt-on No-Tilt feature for frame dump applications – Simply engage the four stops on the mount to prevent the fifth wheel from rocking (Part No: KIT-NO-TILT)

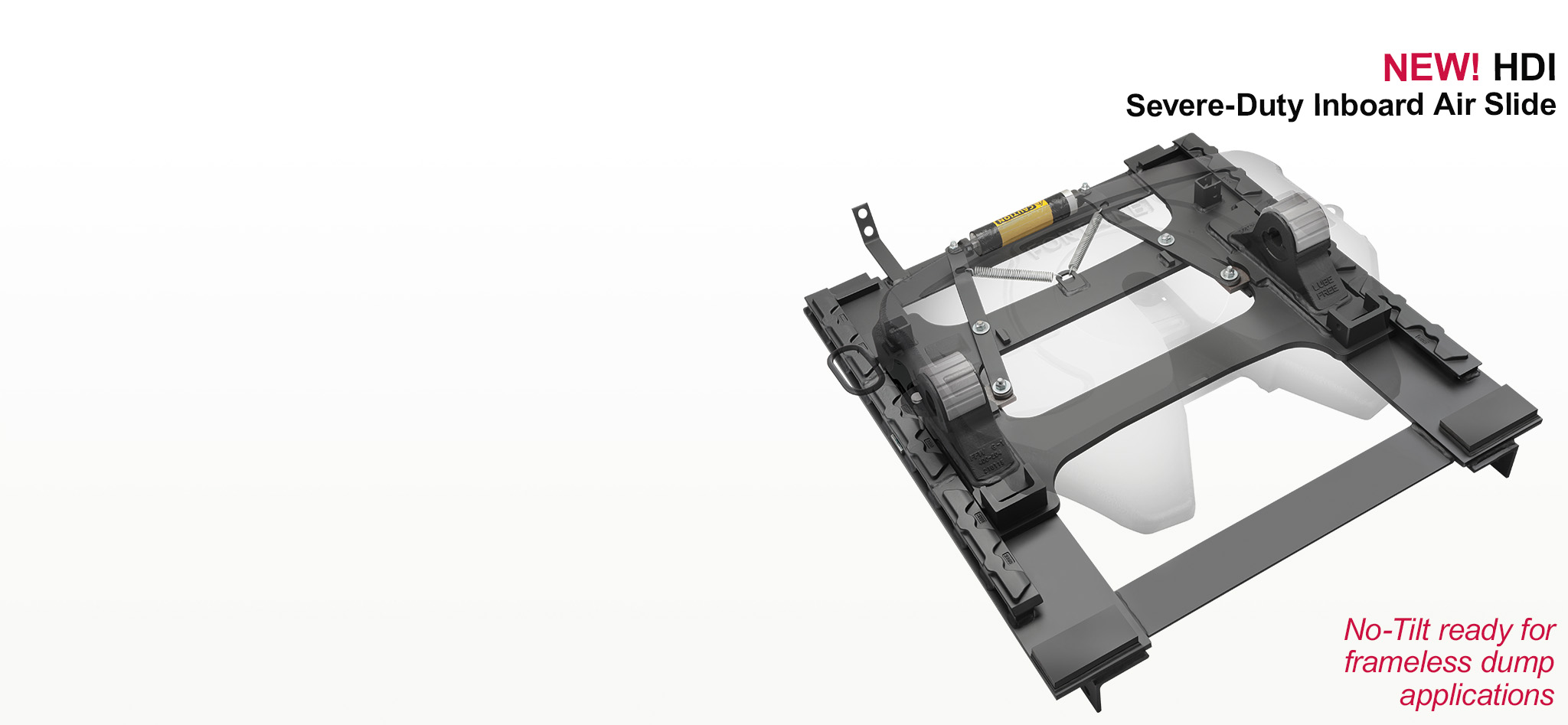

- The new Fontaine HDI has all of the same great features as the HDS except that it mounts inboard of the chassis mainbeams
- An air cylinder drives a mechanical linkage to release the slide locking wedges–operates from a closed position to protect the stainless steel shaft from corrosion, bending and roadspray
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Available in a wide range of mounting heights and travel lengths to meet your hauling needs.
- Bolt-on No-Tilt feature for frame dump applications – Simply engage the four stops on the mount to prevent the fifth wheel from rocking (Part No: KIT-NO-TILT)
Note: HDI and NHDI (No-Tilt) inboard slide models are first fit assemblies only and are not available through the Fontaine Fifth Wheel aftermarket at this time. Expected availablity is Q1 2023.
